Perfect Welding

Water-cooled

TIG Welding Torches

Welding with TIG welding torch

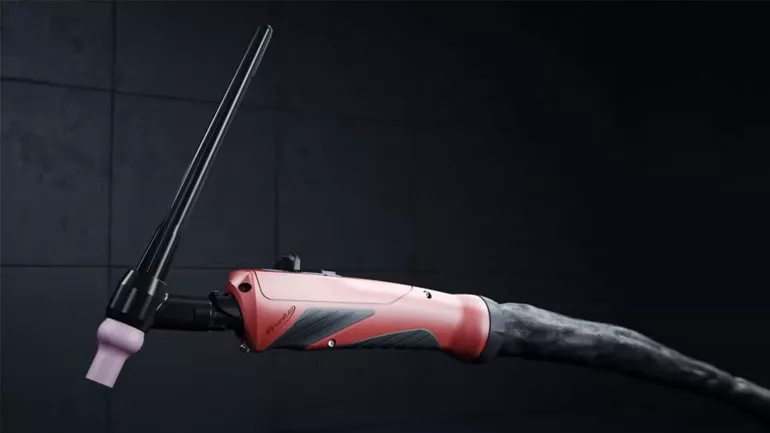

Water-cooled welding torches

Protection against fatigue and a secure, non-slip grip are all guaranteed by the ergonomically designed handles of the Multilock hosepacks in the new TIG torch generation. The ball joint and extremely flexible hosepack also make handling easier, especially when the welding locations are difficult to access. In addition to different power categories, there are two handle versions that can be equipped with different operating elements and torch body versions.

Further details about our TIG welding torches
WIG torch

THP welding torches

TIG welding torch water-cooled

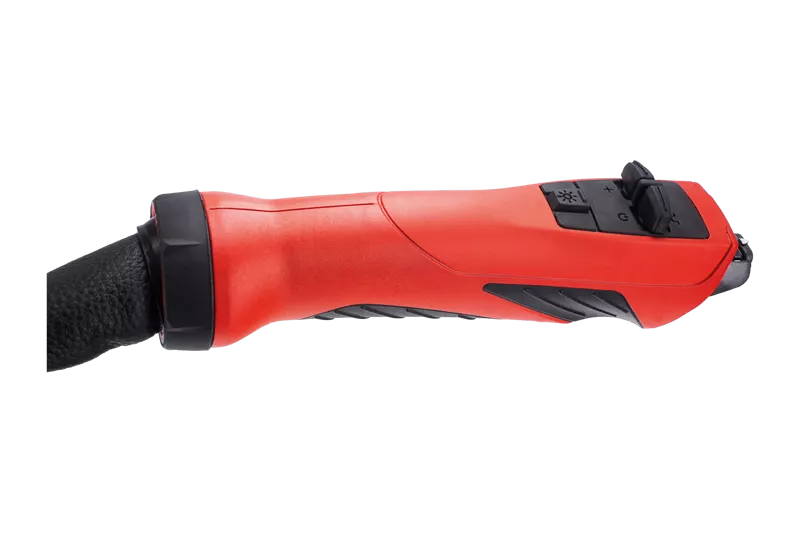

THP 300i W ML

Welding current (ArCO2)

 Control variants
  • TIG DC 60/100% D.C.: 300/230 A
  • TIG AC 60/100% D.C.: 250/190 A
  • Hosepack length: 4/8 m
  • Up/Down
  • JobMaster
  • Potentiometer

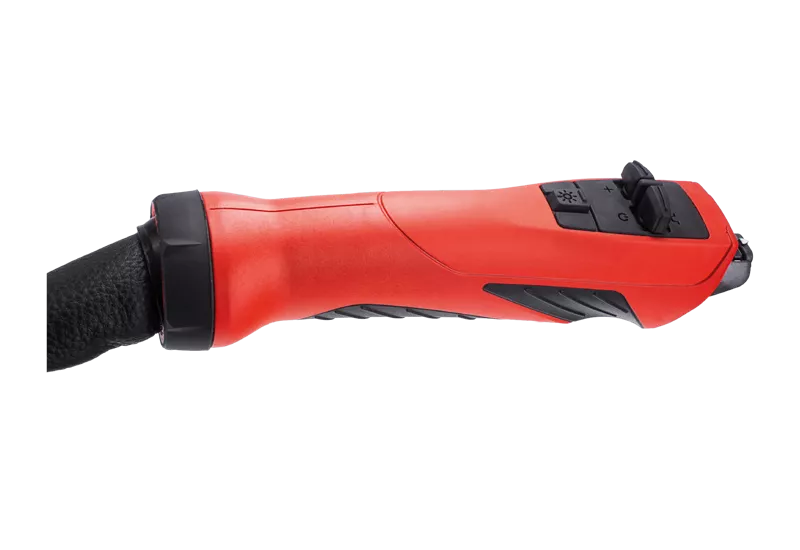

TIG welding torch water-cooled

THP 400i W ML

Welding current (ArCO2)

 Control variants
  • TIG DC 60/100% D.C.: 400/300 A
  • TIG AC 60/100% D.C.: 350/270 A
  • Hosepack length: 4/8 m
  • Up/Down
  • JobMaster
  • Potentiometer
TIG welding torch water-cooled

THP 500i W ML

Welding current (ArCO2)

 Control variants
  • TIG DC 60/100% D.C.: 500/400 A
  • TIG AC 60/100% D.C.: 400/300 A
  • Hosepack length: 4/8 m
  • Up/Down
  • JobMaster
  • Potentiometer
TIG welding torch water-cooled

THP 300i W SH ML

Welding current (ArCO2)

 Control variants
  • TIG DC 60/100% D.C.: 300/230 A
  • TIG AC 60/100% D.C.: 250/190 A
  • Hosepack length: 4/8 m
  • Up/Down
  • JobMaster
  • Potentiometer
  • Long trigger
  • No trigger







Downloads

    TTB torch bodies

    water-cooled torch body

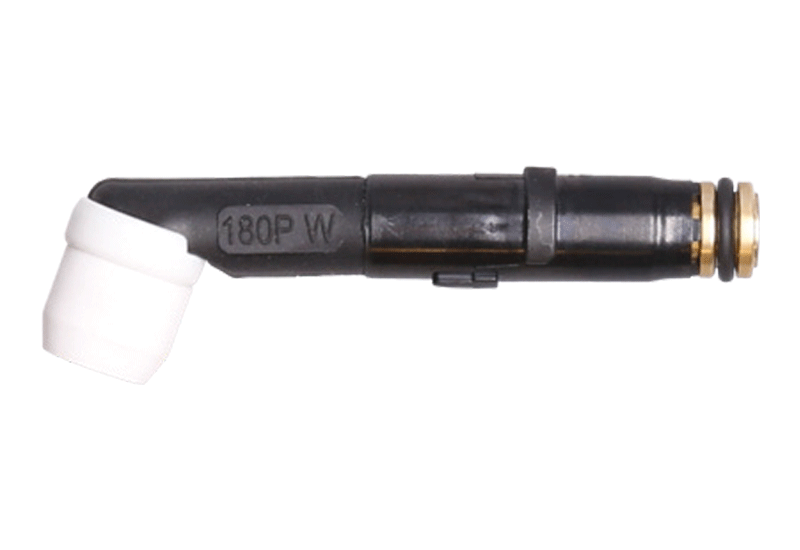

    TTB 180P W ML



    Welding current (ArCO2)
    • TIG DC 60/100% D.C.: 180/140 A
    • TIG AC 35/100% D.C.: 140/110 A
    • Electrode diameter: 1.0–3.2 mm

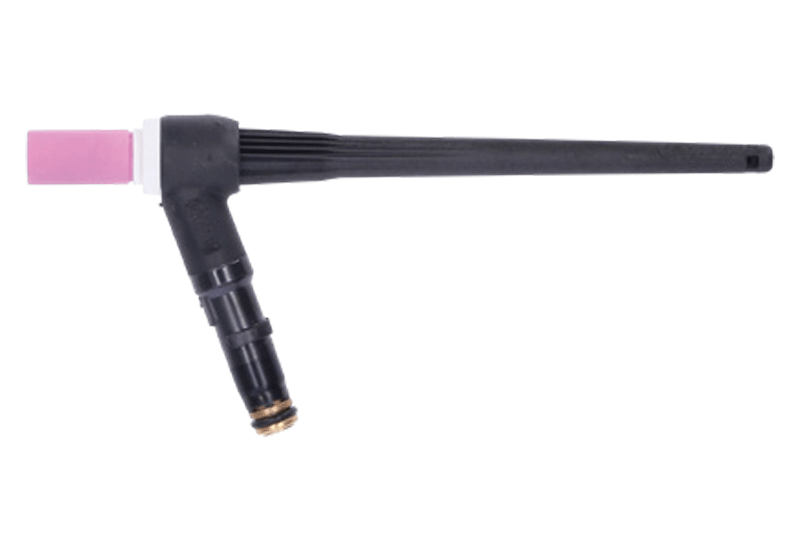

    water-cooled torch body

    TTB 300 W ML*

    Welding current (ArCO2)
    • TIG DC 60/100% D.C.: 300/230 A
    • TIG AC 60/100% D.C.: 250/190 A
    • Electrode diameter: 1.0–3.2 mm

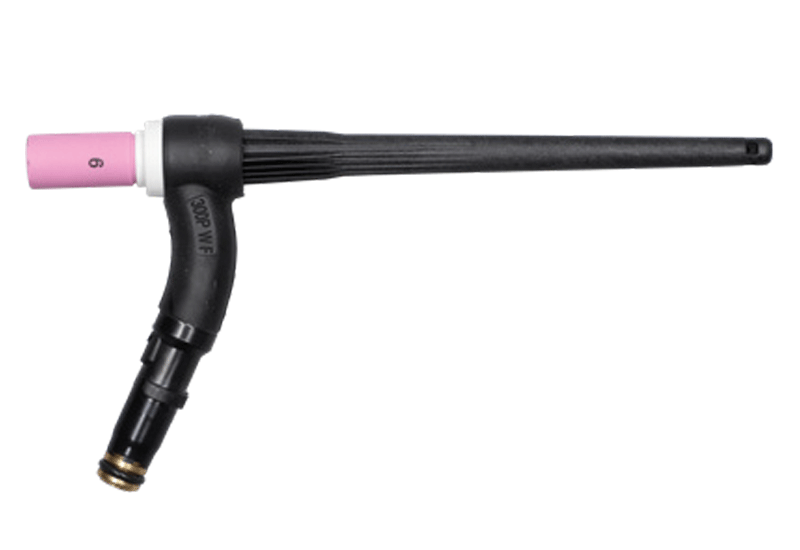

    water-cooled torch body

    TTB 300 W ML flex*

    Welding current (ArCO2)
    • TIG DC 60/100% D.C.: 300/230 A
    • TIG AC 60/100% D.C.: 250/190 A
    • Electrode diameter: 1.0–3.2 mm

    water-cooled torch body

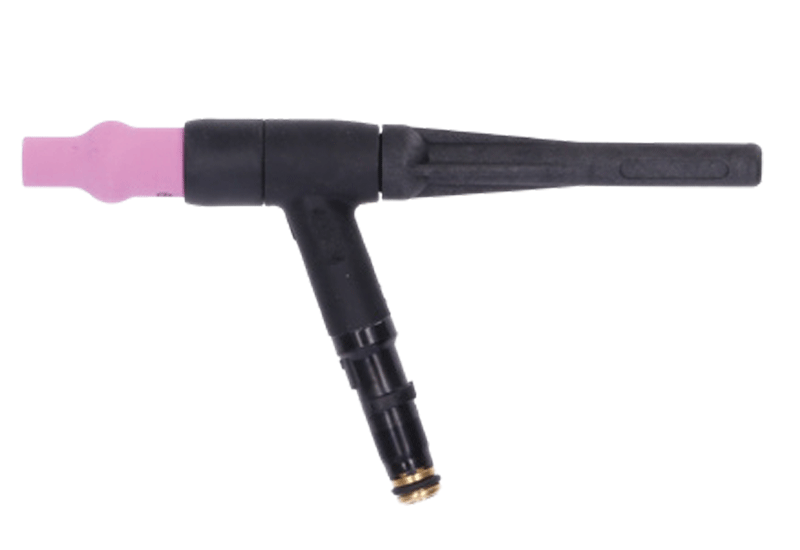

    TTB 400 W ML*

    Welding current (ArCO2)
    • TIG DC 60/100% D.C.: 400/300 A
    • TIG AC 60/100% D.C.: 320/250 A
    • Electrode diameter: 1.0–4.8 mm

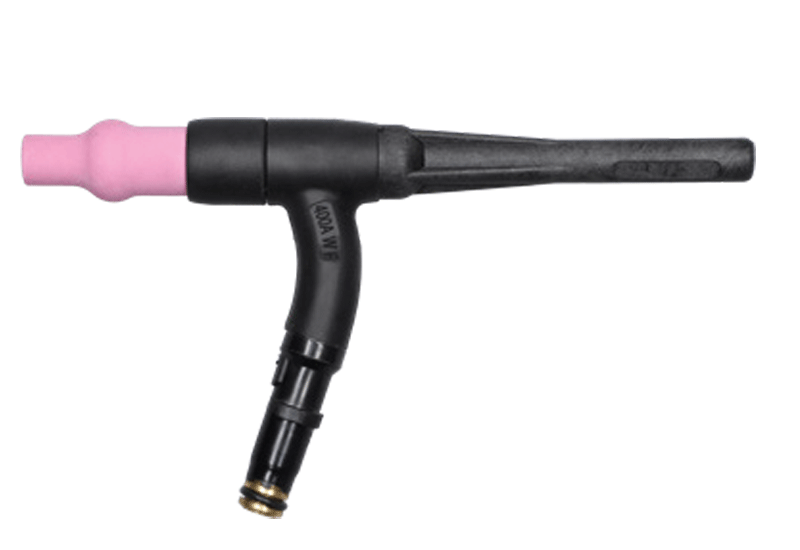

    water-cooled torch body

    TTB 400 W ML flex*

    Welding current (ArCO2)
    • TIG DC 60/100% D.C.: 400/300 A
    • TIG AC 60/100% D.C.: 320/250 A
    • Electrode diameter: 1.0–4.0 mm

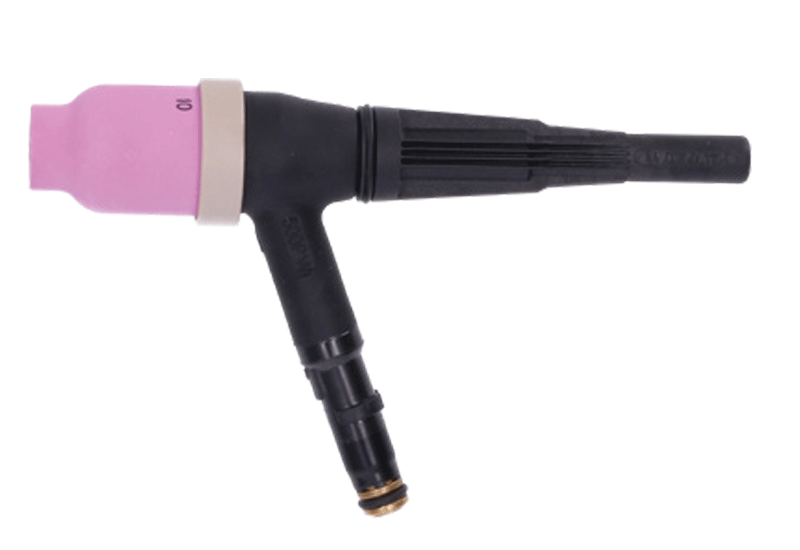

    water-cooled torch body

    TTB 500 W ML*

    Welding current (ArCO2)
    • TIG DC 60/100% D.C.: 500/400 A
    • TIG AC 60/100% D.C.: 400/300 A
    • Electrode diameter: 1.0–6.4 mm

    Downloads

      * available with screw-on or push-on gas nozzles
