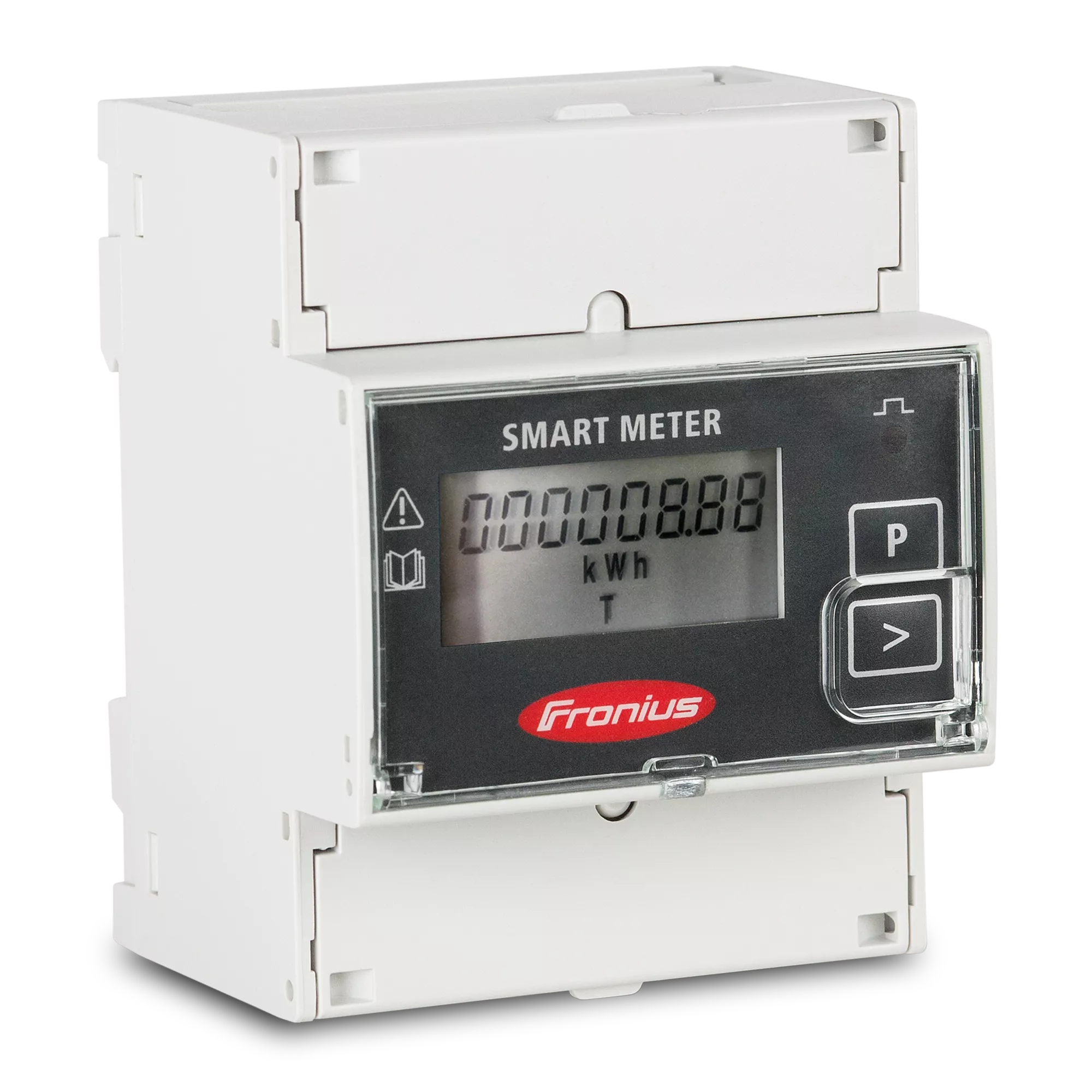

Fronius Smart Meter
Measure to pay less: Fronius Smart Meter
Visualise, control and optimise energy flows: you can only do that if you have the right data. And this is exactly what the
Fronius Smart Meter – our bidirectional and intelligent electricity meter – provides.
Based on the information obtained, and in combination with the inverter and Fronius Solar.web, you can deliver efficient energy management, which saves your customers money – whether for private or commercial photovoltaic systems.
We offer the right Smart Meter for photovoltaic systems for every application. Unlock the potential of the data. You can rely on the Fronius Smart Meter. Designed to monitor.
Based on the information obtained, and in combination with the inverter and Fronius Solar.web, you can deliver efficient energy management, which saves your customers money – whether for private or commercial photovoltaic systems.
We offer the right Smart Meter for photovoltaic systems for every application. Unlock the potential of the data. You can rely on the Fronius Smart Meter. Designed to monitor.
Please choose your desired product.
Technical Data
General Data
| Nominal voltage | 400 - 415 V |
|---|---|
| Max. current | 3 x 50 000 A |
| Connection cross-section phase and neutral conductor | 0,05 - 4 mm² |
| Connection cross-section current transformers and communication cables | 0,05 - 4 mm² |
| Self-consumption | 2,5 W |
| Starting current | 40 mA |
| Accuracy class | 1 |
| Active energy accuracy | Class B (EN50470) |
| Reactive energy accuracy | Class 2 (EN/IEC 62053-23) |
| Overload (short-term) | 20xImax/0,5 s |
| Installation | Indoor installation (DIN rail) |
| Housing | 4 modules DIN 43880 |
| Protection class | IP 51 (front panel) / IP 20 (terminals) |
| Display | 8-digit LCD |
| Operating range | -5 - +55°C |
| Interface to inverter | Modbus RTU (RS485) |
ADDITIONAL INFORMATION
Supplied without current converter. More information on how to select a suitable current converter can be found here.
