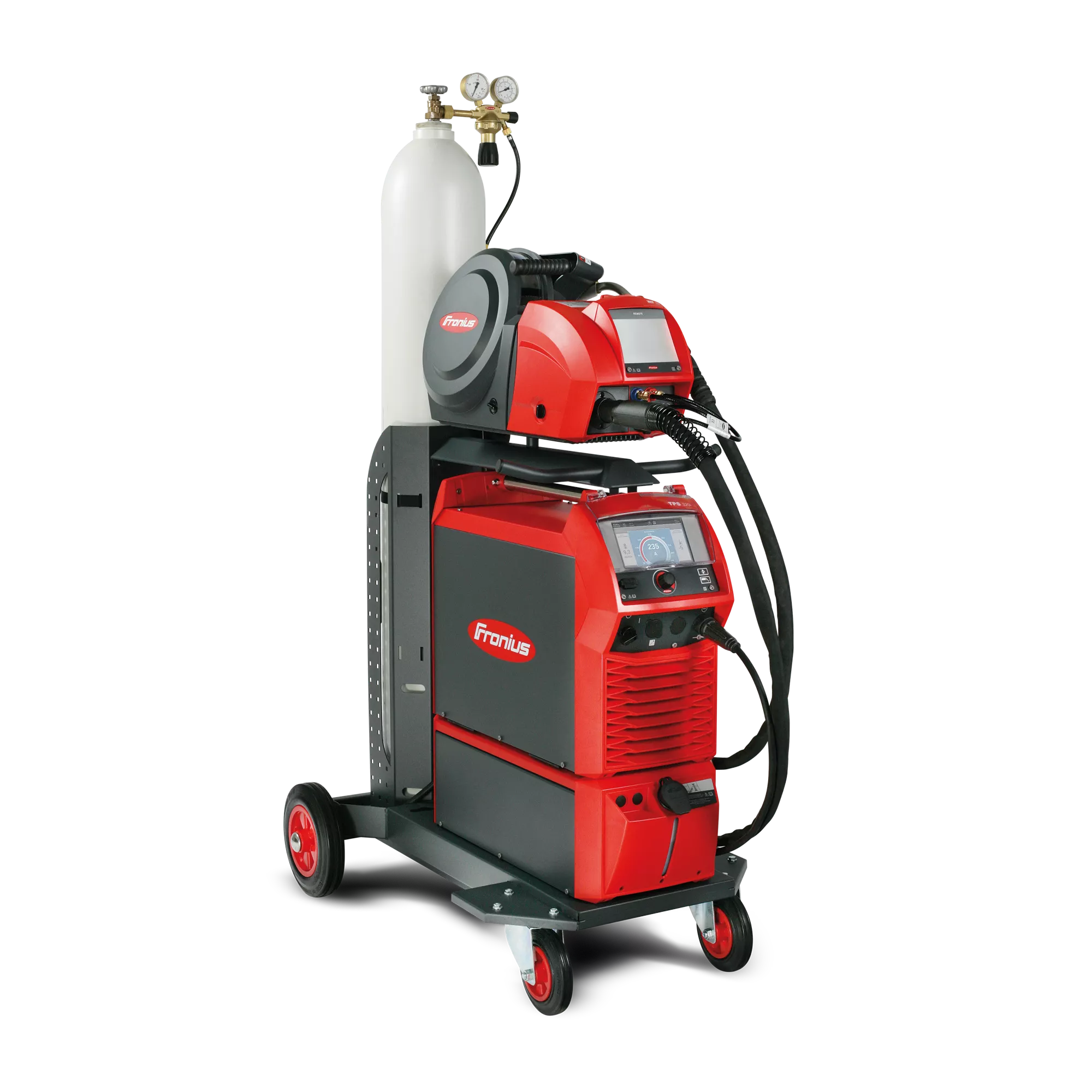

  4. TPS 500i

TPS/i

Please choose your desired product.

Technical Data

General Data

Mains voltage3 x 400V
Mains Frequency50-60Hz
Welding current min.3 A
Welding current max.500 A
Welding current / Duty cycle [10min/40°C]500A / 40%
Welding current / Duty cycle [10min/40°C]430A / 60%
Welding current / Duty cycle [10min/40°C]360A / 100%
Open-circuit voltage71 V
Degree of protectionIP23
Dimension / length706 mm
Dimension / width300 mm
Dimension / height510 mm
Weight38 kg

Function overview

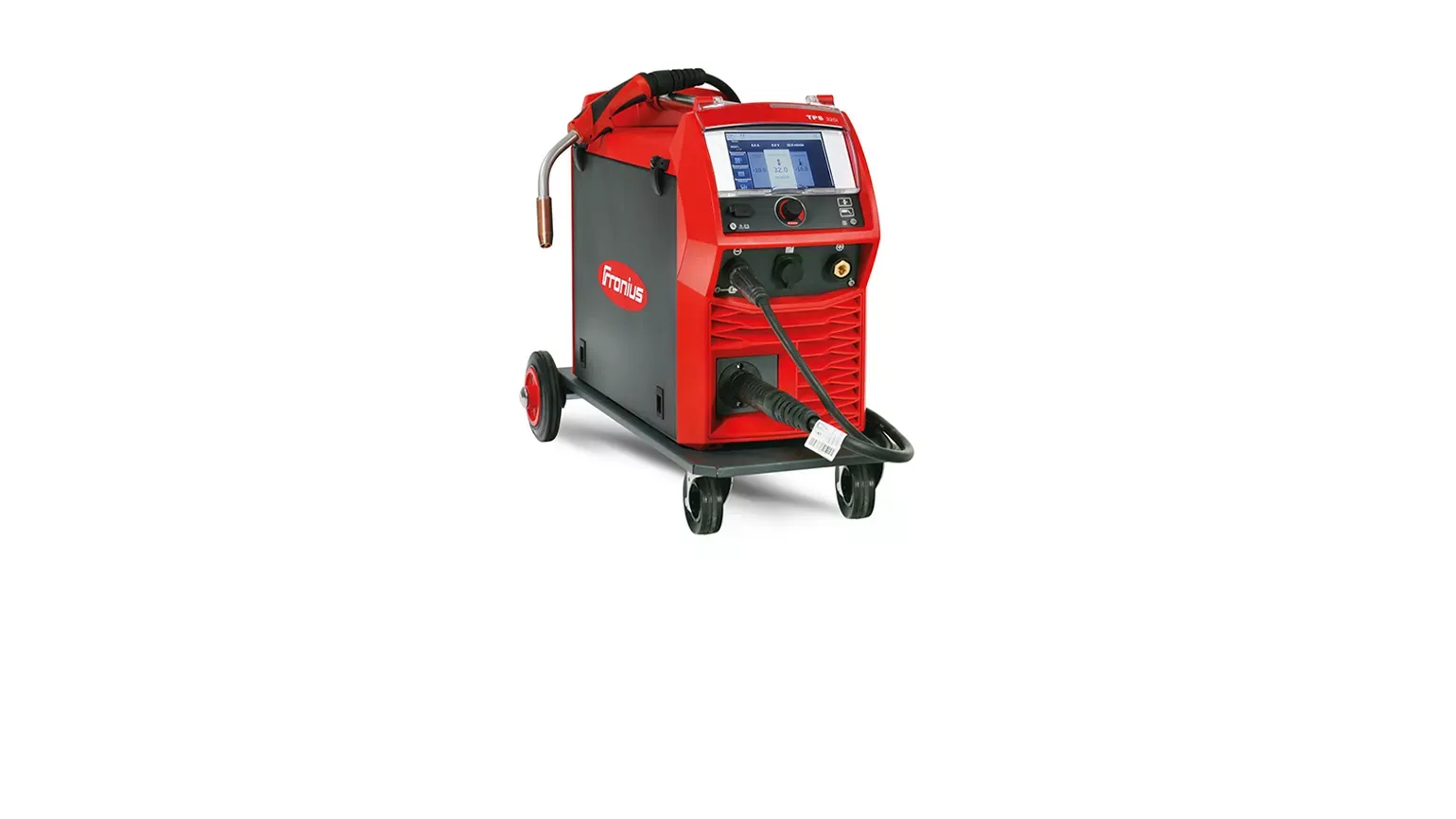

  TPS 320i TPS 400i  TPS 500i  TPS 600i
Mains voltage

3 x 400 V

3 x 380 – 460 V (/nc)

3 x 575 V (/600V/nc)

3 x 200 – 460 V (/MV/nc)

3 x 400 V

3 x 380 – 460 V (/nc)

3 x 575 V (/600V/nc)

3 x 200 – 460 V (/MV/nc)

3 x 400 V

3 x 380 – 460 V (/nc)

3 x 575 V (/600V/nc)

3 x 200 – 460 V (/MV/nc)

3 x 400 V

3 x 380 – 460 V (/nc)

3 x 575 V (/600V/nc)
Mains frequency 50 – 60 Hz
Cos phi 0,99

MIG/MAG welding current range

 3 – 320 A 3 – 400 A 3 – 500 A  3 – 600 A
10 min/40°C (104°F)40% D.C 320 A 400 A 500 A 600 A
10 min/40°C (104°F)60% D.C 260 A 360 A  430 A 600 A
10 min/40°C (104°F)100% D.C 240 A 320 A 360 A  500 A
Open circuit voltage

73 V

84 V (/nc)

67 V (/600V/nc)

68 V (/MV/nc)

75 V

83 V (/nc)

68 V (/600V/nc)

67 V (/MV/nc)

71 V

82 V (/nc)

71 V (/600V/nc)

68 V (/MV/nc)

71 V

85 V (/nc)

73 V (/600V/nc)
MIG/MAG working voltage 14,2 – 30 V 14,2 – 34 V 14,2 – 39 V  14,2 – 44 V
Protection class IP23
Dimensions l x w x h 706 x 300 x 510 mm
